PLED-0200 10° IR Illuminator, 120 m Range
850 nm IR illuminator with a 10° beam and about 120 m working distance.
- 850 nm wavelength; 10° illuminating angle
- Working distance about 120 m
- DC 12V
- IP66 weatherproof and IK10 vandal-proof casing
- Operating temperature -50°C to 50°C
- Plastic and aluminium; black; 105 x 54 x 154 mm, 940.5 g
Overview
10° IR Illuminator, 120 m Range
The PLED-0200 is an infrared light source for night-time coverage at long range. It has a narrow 10° beam at 850 nm and a weatherproof, vandal-resistant casing.
Key features
- 850 nm wavelength; 10° illuminating angle
- Working distance about 120 m
- DC 12V
- IP66 weatherproof and IK10 vandal-proof casing
- Operating temperature -50°C to 50°C
- Plastic and aluminium; black; 105 x 54 x 154 mm, 940.5 g
- Approvals: CE, FCC, VCCI, C-Tick
At a glance
- Product type
- IR LED Illuminator
- IR range
- 120m
- Power
- DC 12V
- Housing
- Weatherproof (IP66), Vandal proof (IK10)
- Operating temp.
- -50°C ~ 50°C (-58°F ~ 122°F)
Specifications
| Product Profile | |
|---|---|
| Product Type | IR LED Illuminator |
| IR Working Distance | 120m |
| General | |
| Wavelength | 850 nm |
| Illuminating Angle | 10° |
| Power Source | DC 12V |
| Weight | 940.5g (2.073lb) |
| Dimensions | (W x H x D): 105mm x 54mm x 154mm (4.1" x 2.1" x 6") |
| Environmental Casing | Weatherproof (IP66), Vandal proof (IK10) |
| Operating Temperature | -50°C ~ 50°C (-58°F ~ 122°F) |
| Approvals | CE, FCC, VCCI, C-Tick, IP66, IK10 |
| Color | Black |
| Material | Plastic Aluminum |
Specifications are subject to change. Please confirm critical values with us before ordering.
Documents
Datasheets, manuals and firmware
Current documents for the PLED-0200 are sent on request, so you always receive the latest version.
Request datasheetRelated products
Box
A213
5MP Fixed Box Camera with 150 dB WDR and CS Mount
The A213 is a 5MP box camera for projects that need lens choice or custom housings. A 2.8 mm lens is fitted, and the CS mount accepts DC-iris and P-iris alternatives. Extreme WDR and deep learning detection of faces, people and vehicles make it suitable for entrances and traffic points.
Box
A29
2MP Fixed Box Camera with 150 dB WDR
The A29 is a 2MP box camera for installs that need lens choice and custom housings. Extreme WDR and a high-frame-rate mode handle fast, high-contrast scenes. Deep learning analytics and alarm I/O make it fit for traffic and access-point applications.
Fisheye
B511A
12MP Indoor Hemispheric Dome with 20 m IR and 130 dB WDR
The B511A is a 12MP indoor hemispheric dome with a 198.5° overview and a 1/1.7" sensor. It captures a whole room from the ceiling and produces dewarped views for detail. Built-in motion, tracking and line crossing analytics suit retail, lobbies and open offices.
PTZ

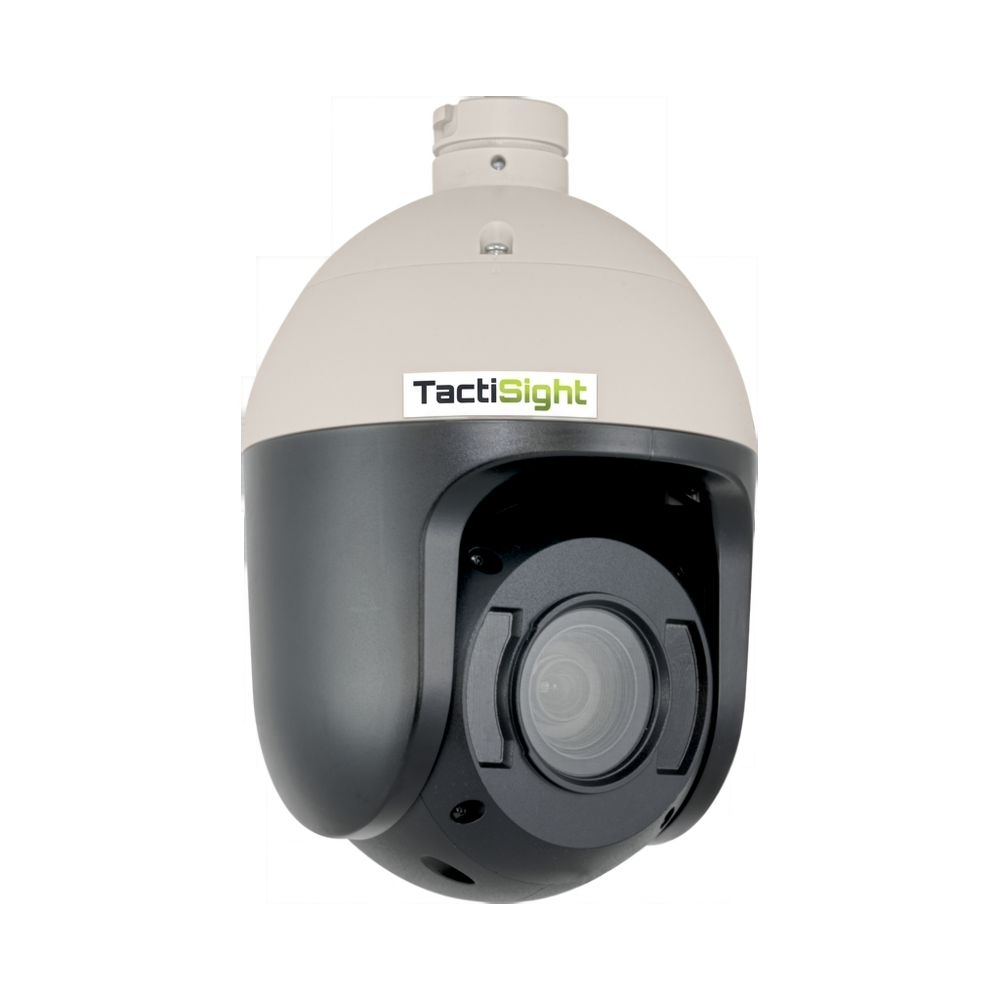

B928
