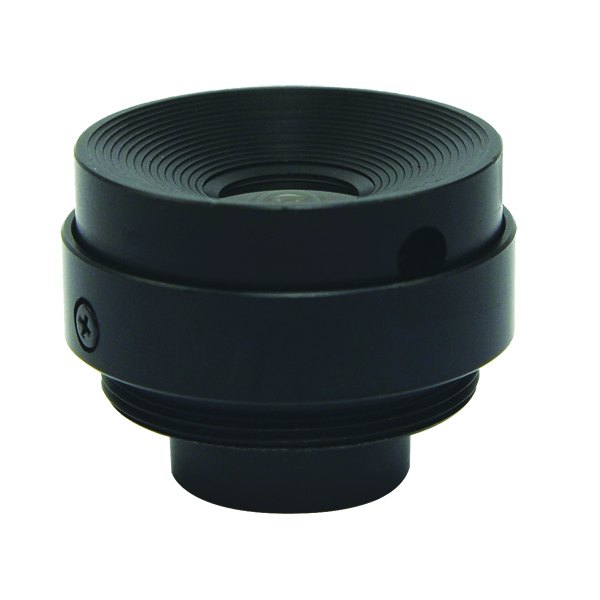

PLEN-0130 f2.93mm Fixed Lens, CS Mount
Fixed-focal 2.93 mm F2.0 CS-mount lens for megapixel day/night cameras.
- Fixed focal length 2.93 mm, aperture F2.0
- Fixed iris and manual focus
- CS mount
- Designed for 1/2.7" sensors; megapixel, day/night capable
- Weight 22.5 g (0.050 lb)
- 1-year warranty
Overview
f2.93mm Fixed Lens, CS Mount
The PLEN-0130 is a fixed-focal CS-mount lens with a wide field of view for general-purpose indoor and outdoor cameras. It is a manual-focus, fixed-iris design suited to 1/2.7" sensors. Its low weight keeps it easy to fit into compact camera bodies.
Key features
- Fixed focal length 2.93 mm, aperture F2.0
- Fixed iris and manual focus
- CS mount
- Designed for 1/2.7" sensors; megapixel, day/night capable
- Weight 22.5 g (0.050 lb)
- 1-year warranty
At a glance
- Product type
- Fixed Lens
- Sensor
- 1/2.7"
- Lens
- Fixed focal, f2.93mm
Specifications
| Product Profile | |
|---|---|
| Product Type | Fixed Lens |
| Sensor Size | 1/2.7" |
| Day / Night | Yes |
| Lens | |
| Focal Length | Fixed focal, f2.93mm |
| Aperture | F2.0 |
| Iris | Fixed iris |
| Focus | Manual focus |
| Lens Mount | CS Mount |
| General | |
| Weight | 22.5g (0.050lb) |
Specifications are subject to change. Please confirm critical values with us before ordering.
Documents
Datasheets, manuals and firmware
Current documents for the PLEN-0130 are sent on request, so you always receive the latest version.
