PMIC-0100 Active Omnidirectional Microphone
Powered omnidirectional condenser microphone for camera line-in audio.
- Active condenser microphone, omnidirectional
- Frequency response 300-5500 Hz; impedance 600 ohms
- Output 2Vpp / -25 dB; current up to 10 mA
- 3.5 mm jack and terminal block; DC 9-12V
- 2.3 m cable; RCA to two-wire and RCA to 3.5 mm adapter cables supplied
- Weight 50 g; storage -25°C to 85°C
Overview
Active Omnidirectional Microphone
The PMIC-0100 is an active condenser microphone with an omnidirectional pickup. It needs 9-12 V DC and connects to cameras that have a line-in audio input.
Key features
- Active condenser microphone, omnidirectional
- Frequency response 300-5500 Hz; impedance 600 ohms
- Output 2Vpp / -25 dB; current up to 10 mA
- 3.5 mm jack and terminal block; DC 9-12V
- 2.3 m cable; RCA to two-wire and RCA to 3.5 mm adapter cables supplied
- Weight 50 g; storage -25°C to 85°C
At a glance
- Product type
- Microphone
- Power
- DC 9-12V
Specifications
| Product Profile | |
|---|---|
| Product Type | Microphone |
| Audio | |
| Microphone Type | Active |
| Transducer Type | Condenser |
| Frequency Response | 300 - 5500 Hz |
| Impedance | 600 ohms |
| Audio Output Signal | 2Vpp/-25dB |
| Current Consumption | Max. 10mA |
| Polar Pattern | Omni-Directional |
| Interface | |
| Audio Interface | 3.5mm Phone Jack, Terminal block |
| General | |
| Power Source | DC 9-12V |
| Weight | 50g (0.06lb) |
| Bundled Accessories | Power cord, RCA to two wire Converter cable, RCA-to-3.5mm Jack Converter cable |
| Cable Length | 2.3 m |
| Storage Temperature | -25 °C ~ 85 °C (-13 °F ~ 185 °F) |
Specifications are subject to change. Please confirm critical values with us before ordering.
Documents
Datasheets, manuals and firmware
Current documents for the PMIC-0100 are sent on request, so you always receive the latest version.
Request datasheetRelated products
Box
A213
5MP Fixed Box Camera with 150 dB WDR and CS Mount
The A213 is a 5MP box camera for projects that need lens choice or custom housings. A 2.8 mm lens is fitted, and the CS mount accepts DC-iris and P-iris alternatives. Extreme WDR and deep learning detection of faces, people and vehicles make it suitable for entrances and traffic points.
Box
A29
2MP Fixed Box Camera with 150 dB WDR
The A29 is a 2MP box camera for installs that need lens choice and custom housings. Extreme WDR and a high-frame-rate mode handle fast, high-contrast scenes. Deep learning analytics and alarm I/O make it fit for traffic and access-point applications.
Bullet

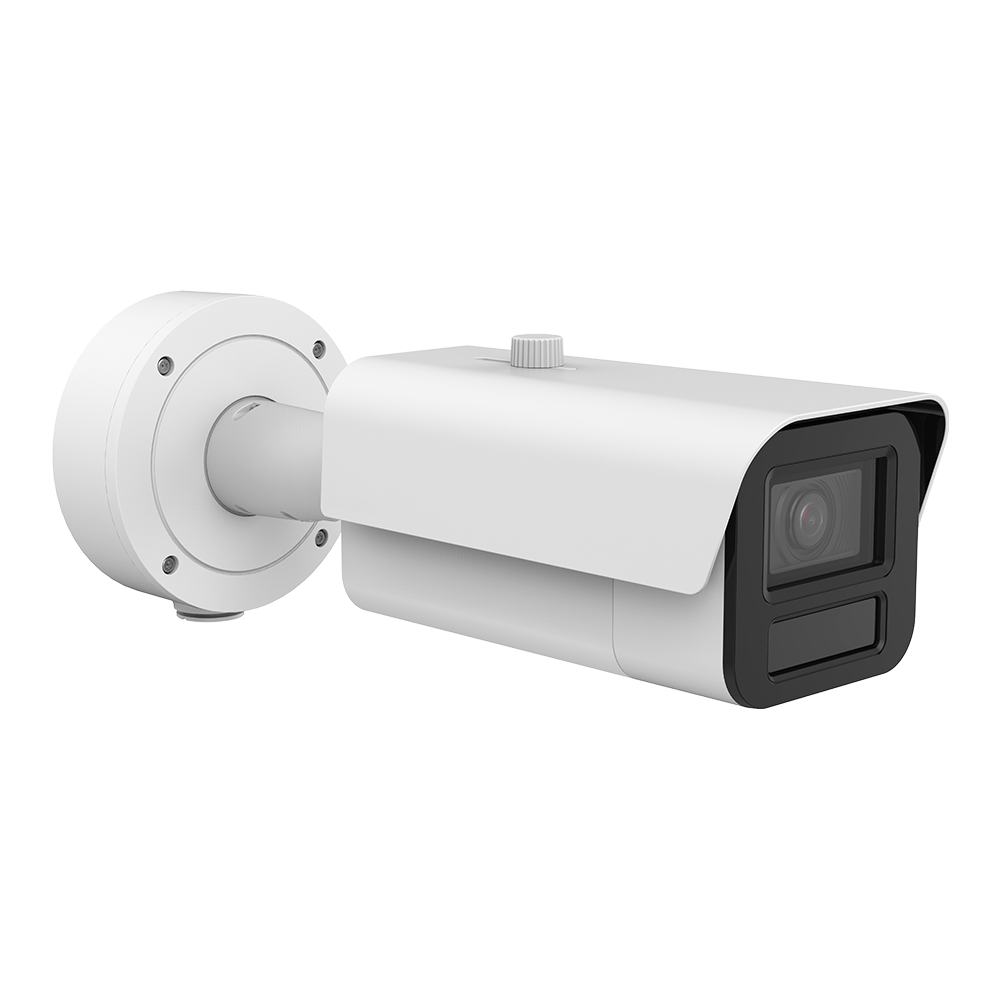

A429
