PPOE-0202 90W Multi-Gigabit High PoE Injector
Single-port 90 W injector supporting IEEE 802.3af, at and bt over 4 pairs.
- One PoE port, RJ-45, 10/100/1000 Base-T and multi-gigabit
- IEEE 802.3af, 802.3at and 802.3bt; up to 90 W on 4 pairs
- Output DC 56V; input AC 100-240V, 50/60 Hz
- Ships with a universal power connector
- Operating temperature 0°C to 50°C; humidity up to 90% RH, non-condensing
- CE, FCC, RoHS; 67.5 x 164 x 39.8 mm, 236 g
Overview
90W Multi-Gigabit High PoE Injector
The PPOE-0202 adds PoE to one Ethernet link at up to 90 W. It is listed for the A952, A956, Z953, Z954, Q83 and Q84, and supports 10/100/1000M and multi-gigabit links.
Key features
- One PoE port, RJ-45, 10/100/1000 Base-T and multi-gigabit
- IEEE 802.3af, 802.3at and 802.3bt; up to 90 W on 4 pairs
- Output DC 56V; input AC 100-240V, 50/60 Hz
- Ships with a universal power connector
- Operating temperature 0°C to 50°C; humidity up to 90% RH, non-condensing
- CE, FCC, RoHS; 67.5 x 164 x 39.8 mm, 236 g
At a glance
- Product type
- PoE Injector
- Network
- PoE: 1 port(s), Ethernet (10/100/1000 Base-T), RJ-45 connector
- Power
- AC 100-240V, 50/60 Hz
- Operating temp.
- 0°C ~ 50°C (32°F ~ 122°F)
Specifications
| Product Profile | |
|---|---|
| Product Type | PoE Injector |
| Network | |
| Ethernet Port | PoE: 1 port(s), Ethernet (10/100/1000 Base-T), RJ-45 connector |
| General | |
| PoE Standard | IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt |
| PoE Output | Maximum 90 Watts (4-pair) |
| PoE Power Budget | Maximum 90 W |
| Power Output | DC 56V |
| Power Source | AC 100-240V, 50/60 Hz |
| Weight | 236g(0.52lb) |
| Dimensions | (W x H x D): 67.5mm x 164mm x 39.8mm (2.7" x 6.5" x 1.6") |
| Bundled Accessories | Universal power connector |
| Operating Temperature | 0°C ~ 50°C (32°F ~ 122°F) |
| Storage Temperature | -40 °C ~ 70 °C (-40 °F ~ 158 °F) |
| Operating Humidity | ≤90% RH, non-condensing |
| Approvals | CE, FCC, RoHS compliant |
Specifications are subject to change. Please confirm critical values with us before ordering.
Documents
Datasheets, manuals and firmware
Current documents for the PPOE-0202 are sent on request, so you always receive the latest version.
Request datasheetRelated products
PTZ
A952
8MP Deep Learning 22x Outdoor PTZ Camera with 250 m IR and 150 dB WDR
The A952 is an outdoor 8MP PTZ camera with a 22x optical lens and long-range IR for wide-area and perimeter surveillance. It streams 4K at 30 fps and adds auto tracking and on-camera deep learning detection. The IP66, IK10 metal housing includes a heater for cold-climate operation.
PTZ
A955
5MP Deep Learning 40x Outdoor PTZ Camera with 300 m IR and 150 dB WDR
The A955 is an outdoor 5MP PTZ camera with a 40x optical lens for very long-range monitoring of sites such as borders, ports and industrial yards. It combines 300 m IR, 150 dB WDR and up to 60 fps at 1080p with on-camera deep learning detection. The IP66, IK10 housing carries Taiwan IoT Cybersecurity Certification.
PTZ

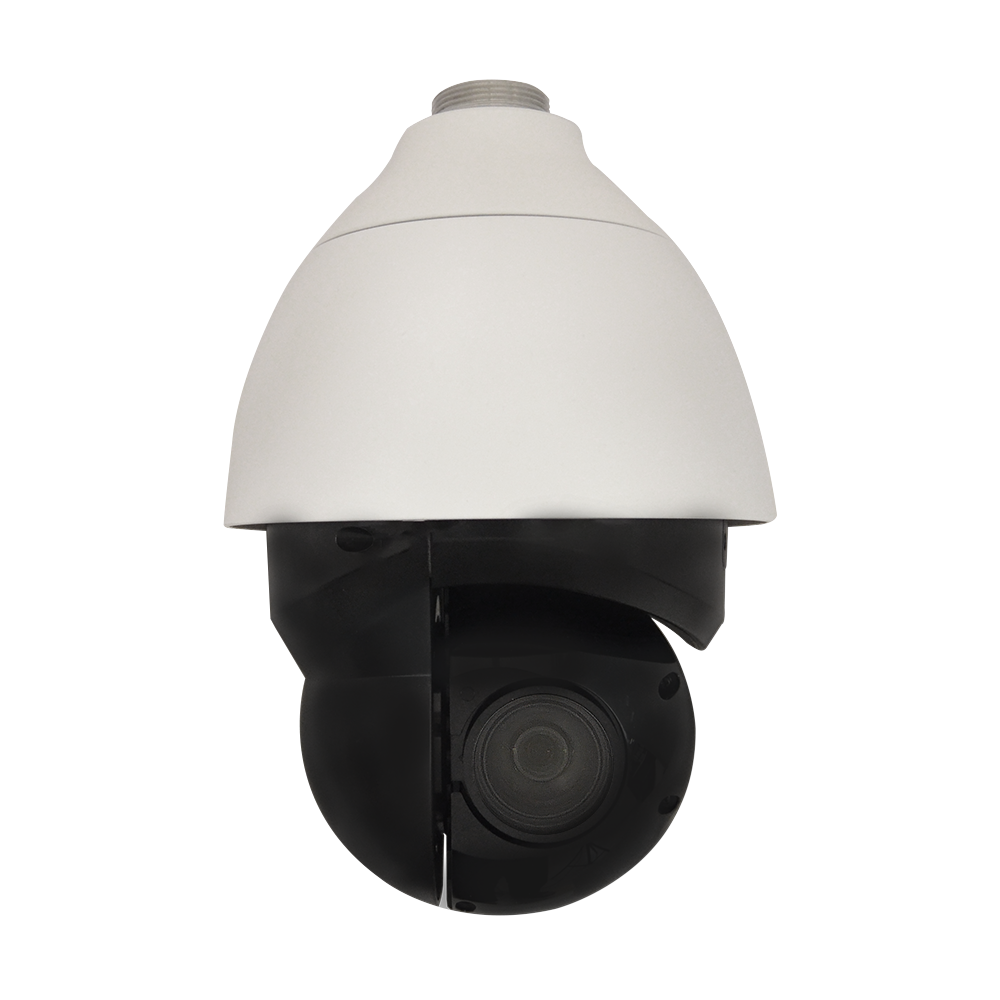

A956
