PCAM-1602 3MP Body Worn Camera with IR and 12-Hour Recording
3MP body-worn camera with IR, AES256 video encryption, 2-inch screen and IP67 housing.
- 3MP, fixed 4.29 mm F2.5 lens, 140° horizontal view; 30 fps up to 2304 x 1296
- Advanced WDR at 100 dB; four IR LEDs reaching 10 m, plus white LED
- H.264 and MPEG-4; stills up to 32MP; JPG format
- 2-inch colour TFT screen; face detection
- Two-way audio with built-in microphone and speaker
- AES256 video encryption; password-protected user levels
Infrared (IR)Wide dynamic rangeBuilt-in microphoneNDAA compliant
Overview
3MP Body Worn Camera with IR and 12-Hour Recording
The PCAM-1602 is a wearable camera for security and field staff who need to record interactions on the move. It stores encrypted video locally, includes a 2-inch display, and has IR for low light. A rechargeable 3500 mAh battery supports up to 12 hours of recording.
Key features
- 3MP, fixed 4.29 mm F2.5 lens, 140° horizontal view; 30 fps up to 2304 x 1296
- Advanced WDR at 100 dB; four IR LEDs reaching 10 m, plus white LED
- H.264 and MPEG-4; stills up to 32MP; JPG format
- 2-inch colour TFT screen; face detection
- Two-way audio with built-in microphone and speaker
- AES256 video encryption; password-protected user levels
- Pre-record up to 1 min, post-record up to 10 min
- 3500 mAh lithium-ion battery; up to 12 h at 480p (IR off); 3 h charge; USB Type-C
- IP67 and 2 m drop resistance; -20°C to 70°C; 165 g
- Includes charger, charger base, USB cable and back clip; AVI export
At a glance
- Product type
- Body Worn Camera
- Resolution
- 3MP
- Sensor
- Progressive Scan CMOS
- Lens
- Fixed focal, f4.29mm
- IR range
- 10m
- WDR
- Advanced WDR (100 dB)
- Compression
- H.264, MPEG-4
- Power
- Rechargeable Lithium-ion Battery
- Housing
- Weatherproof (IP67), Drop resistant (2 meters)
Specifications
| Product Profile | |
|---|---|
| Product Type | Body Worn |
| Application Environment | Outdoor |
| Maximum Resolution | 3MP |
| Image Sensor | Progressive Scan CMOS |
| Day / Night | Yes |
| Low Light Sensitivity | Standard |
| Minimum Illumination | Color: 0.1 lux at F1.2 |
| Mechanical IR Cut Filter | No |
| IR LED | IR LED x 4 |
| IR Working Distance | 10m |
| White LED | Yes |
| LCD Screen | 2-inch Color TFT Screen |
| Lens | |
| Focal Length | Fixed focal, f4.29mm |
| Aperture | F2.5 |
| Horizontal Viewing Angle | 140° |
| Video | |
| Compression | H.264, MPEG-4 |
| Maximum Frame Rate vs. Resolution | 30 fps at 2304 x 1296 30 fps at 1920 x 1080 30 fps at 1280 x 720 30 fps at 720 x 480 |
| Multi-Streaming | Single stream |
| Wide Dynamic Range | Advanced WDR (100 dB) |
| Text Overlay | Yes |
| Built-in Analytics | Face Detection |
| Image | |
| Image Resolution | 32MP, 21MP, 16MP, 12MP, 10MP, 8MP, 5MP |
| Image Format | JPG |
| Audio | |
| Audio Type | 2-way, Built-in Microphone, Built-in Speaker |
| Audio Compression | MP3 |
| Network | |
| Security | Password protected user level, AES256 Video Encryption |
| Recording | |
| Pre Record | Maximum 1 min pre recording |
| Post Record | Maximum 10 mins post recording |
| Search & Playback | |
| Video Export | AVI |
| System | |
| USB | 1-Port USB Type C, supports data transfer and charging |
| Battery | |
| Battery Type | Lithium-ion battery |
| Battery Capacity | 3500mAh |
| Continuous Recording Time | up to 12 hours (480p, full battery, IR closed) |
| Battery Charging Time | 3hours |
| Interface | |
| Audio Interface | Built-in microphone x1 |
| Indicator | LED |
| Operating Button | Reset Button, Record button, Power Button, Function Key |
| General | |
| Power Source | Rechargeable Lithium-ion Battery |
| Weight | 165g (0.36lb) |
| Dimensions | (L x W x H): 96mm x 62mm x 31mm (3.78" x 2.44" x 1.22") |
| Environmental Casing | Weatherproof (IP67), Drop resistant (2 meters) |
| Bundled Accessories | Battery charger, USB cable, Back clip, Battery Charger Base |
| Operating Temperature | -20°C ~ 70°C (-4°F ~ 158°F) |
| Storage Temperature | -40 °C ~ 80 °C (-40 °F ~ 176 °F) |
| Material | ABS+PC |
Specifications are subject to change. Please confirm critical values with us before ordering.
Documents
Datasheets, manuals and firmware
Current documents for the PCAM-1602 are sent on request, so you always receive the latest version.
Request datasheetRelated products
Body Worn
PCAM-1600
4MP Body Worn Camera with IR, Image Stabiliser and 16 h Recording
The PCAM-1600 is a compact 4MP body worn camera for security staff and field personnel. It records at up to 2560 x 1440, stabilises video with a gyro sensor and adds IR for dim conditions. A 4000 mAh battery supports up to 16 hours of 1080p recording in power-saving mode.
Body Worn

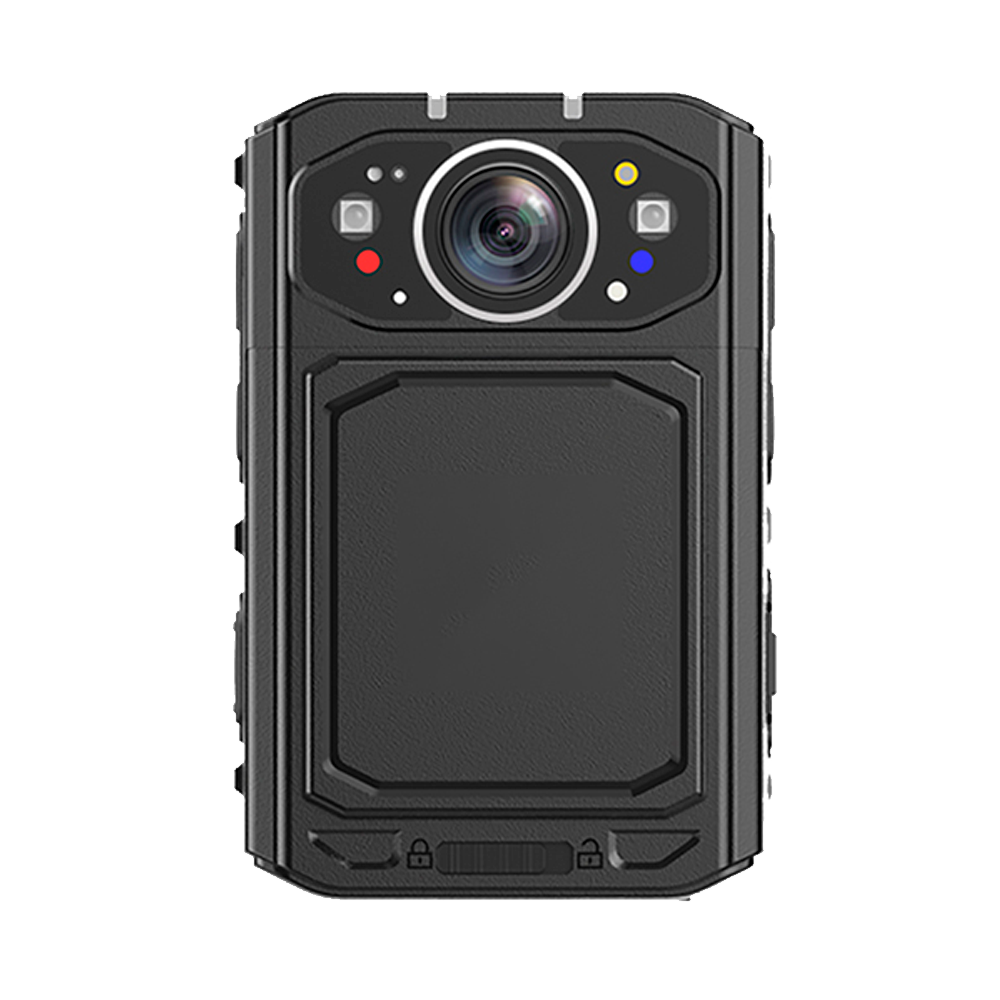

PCAM-1601
8MP Body Worn Camera with Touch Screen and Face Recognition
The PCAM-1601 is an 8MP body worn camera with a 2.4-inch colour touch screen for review and control on the device. It records up to 4K at 30 fps, with built-in face recognition and IR assist for low light. A removable 3000 mAh battery allows up to 12 hours of 1080p recording.
Body Worn
PCAM-1601-P1
8MP Body Worn Camera
The PCAM-1601-P1 is a rugged body-worn camera that records up to 4K video with a 120-degree view and gyro-based stabilization. A removable 4000 mAh battery and AES256 encrypted video support full-shift field use. It is aimed at security staff, patrol teams and on-site personnel who need reliable recorded evidence.
Body Worn

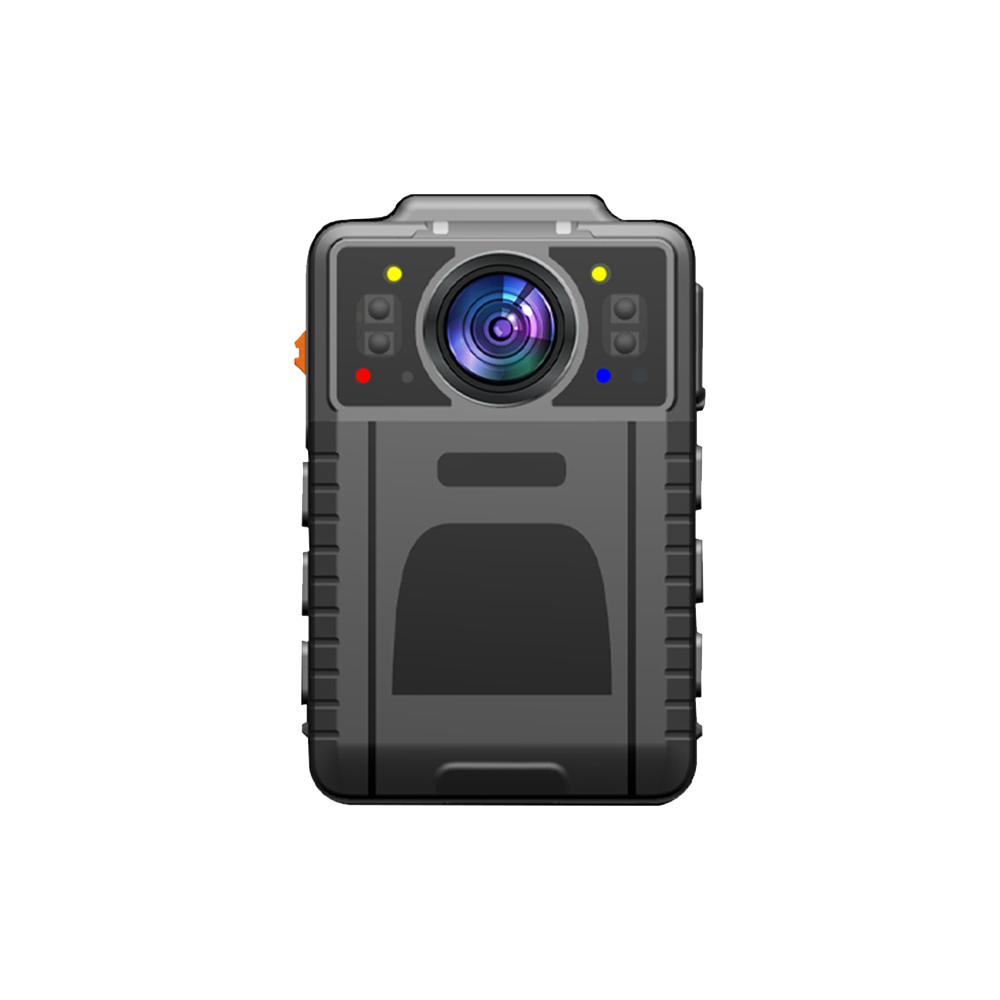

PCAM-1603
