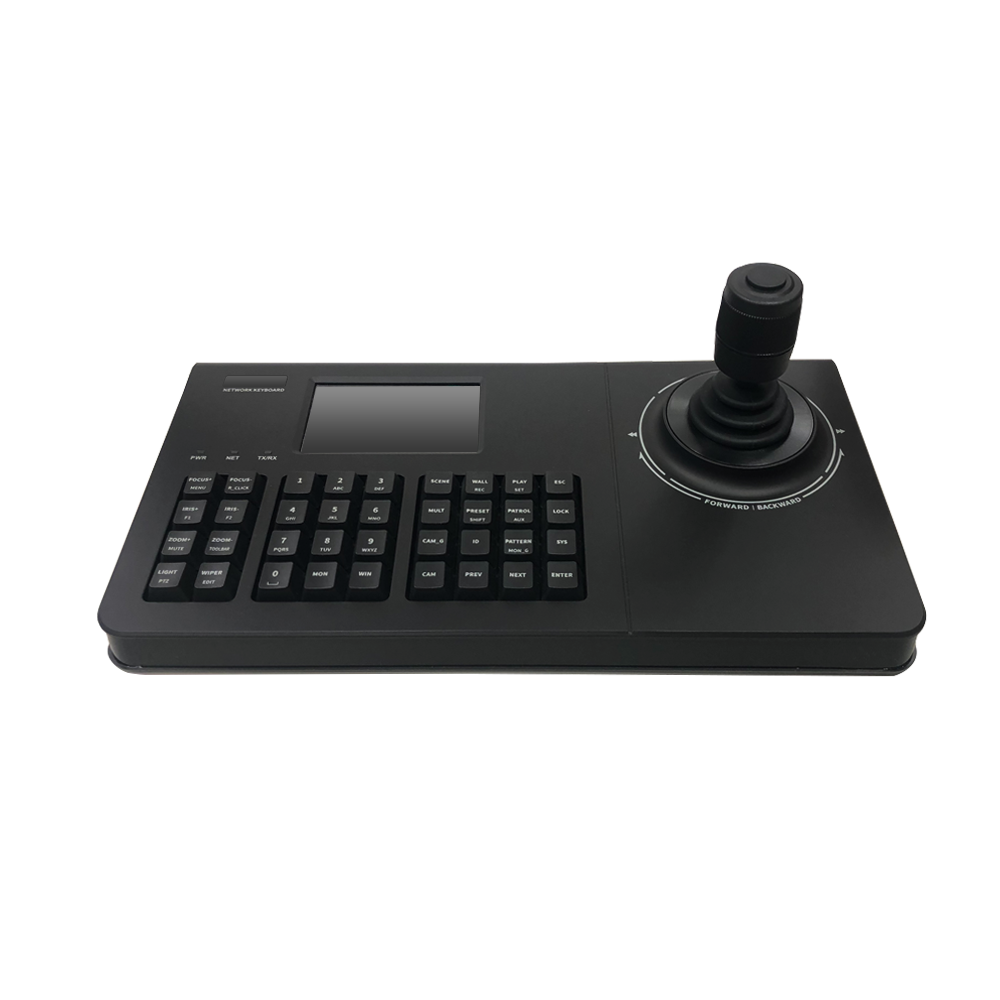

PJSK-0102
PTZ Control Joystick with 4-Inch LCD
The PJSK-0102 is a desktop controller for PTZ cameras on the ZNR, YVR and KNR series. It combines a four-dimensional joystick, 36 keys and a monochrome display, and connects by Ethernet or serial.
KNR-220P 16-Channel 2-Bay RAID Rackmount NVR with 16 PoE Ports
Compact 1U AI recorder with 16 built-in PoE ports, so cameras connect and record without a separate switch.
- 16 channels with 16 licenses included; maximum camera resolution 12MP
- 16 PoE ports (10/100) delivering up to 30 W per port within a 240 W total budget, plus one Gigabit uplink
- Two 3.5" SATA bays, up to 26 TB each, with hardware RAID 0 and 1
- Recording throughput of 160 Mbps; H.265 and H.264
- Deep Learning AI 2.0 with Smart Intrusion Protection on 2 channels and a 25,000-picture vehicle database
- Smart Search and Forensic Search for people and vehicles, with object visual tracking
Built-in PoE portsRAID storageDeep learning AI
Overview
16-Channel 2-Bay RAID Rackmount NVR with 16 PoE Ports
The KNR-220P is a 1U standalone NVR with sixteen PoE ports on board, so cameras plug straight into the recorder. Two SATA bays with hardware RAID store the footage, and Deep Learning AI 2.0 adds people and vehicle analytics. It fits small to mid-size installations that want a tidy, single-box system.
Key features
- 16 channels with 16 licenses included; maximum camera resolution 12MP
- 16 PoE ports (10/100) delivering up to 30 W per port within a 240 W total budget, plus one Gigabit uplink
- Two 3.5" SATA bays, up to 26 TB each, with hardware RAID 0 and 1
- Recording throughput of 160 Mbps; H.265 and H.264
- Deep Learning AI 2.0 with Smart Intrusion Protection on 2 channels and a 25,000-picture vehicle database
- Smart Search and Forensic Search for people and vehicles, with object visual tracking
- HDMI output up to 3840 x 2160 at 30 Hz and a VGA output; fisheye dewarping in live view and playback
- Two-way audio, 8 digital inputs and 2 outputs, RS-485
- ONVIF Profiles S, G and T; operates from -10°C to 55°C
- 1U rack form factor, 380 x 53 x 322 mm
At a glance
- Product type
- Standalone NVR
- Resolution
- 12MP
- Compression
- H.265, H.264
- Video devices
- 16
- Storage bays
- SATA, Max. 2 Disk(s) (without storage disks)
- RAID
- Hardware RAID (on Board) 0, 1
- Network
- Total ports: 17 port(s)
- Power
- AC 100-240V
- Operating temp.
- -10°C ~ 55°C (14°F ~ 131°F)
Specifications
| Product Profile | |
|---|---|
| Product Type | Standalone NVR |
| Maximum Resolution | 12MP |
| Maximum Number of Video Devices | 16 |
| Maximum Number of Clients | Local: 1, Remote: 128 |
| Supported Screen Resolution | HDMI: 3840x2160 (30Hz), 1920x1080 (60Hz/50Hz), 1600x1200 (60Hz), 1280x1024 (60Hz), 1280x720 (60Hz), 1024x768 (60Hz) VGA: 1920x1080 (60Hz/50Hz), 1600x1200 (60Hz), 1280x1024 (60Hz), 1280x720 (60Hz), 1024x768 (60Hz) |
| Hardware | |
| System Architecture | Embedded SoC-based (ARM platform) |
| CPU | ARM-based embedded SoC |
| License | |
| License required | No |
| Free License | 16 |
| Live View | |
| Display Layout Mode | 1, 4, 6, 8, 9, 16 |
| Fisheye Dewarping | Yes (Live View, Playback) |
| Digital Zoom | Yes |
| Event Status | Display event status upon alarm or upon connection loss or recovery between server and client |
| PTZ | |
| PTZ Control | PTZ Control, Speed Control |
| Video | |
| Compression | H.265, H.264 |
| Text Overlay | Yes |
| Analytics | |
| NVR Built-in Analytics | Smart Intrusion Protection (detect people, vehicles entering/ exiting area or crossing the line), Smart Motion Detection (detect when the people, vehicles or other objects move in the predefined area), Face Comparison, Face Detection |
| NVR Analytics Maximum Channels | Smart Intrusion Protection: 2 channels |
| Deep Learning AI | 2.0 |
| Object Recognition Database | Vehicle Picture Capacity: 25,000 |
| Analytics from Camera | Receive analytics based events from the cameras and respond to the events: Face Detection; Smart Motion Detection (People Detection, Vehicle Detection); Smart Intrusion Protection (Intrusion Detection, Line Crossing Detection, Enter Area Detection, Exit Area Detection); People Counting (People Line Counting, People Area Counting, People Flow Counting, Crowd Detection); Object Recognition; Traffic Monitoring |
| Audio | |
| Audio Type | 2-way, Line-in, Line-out |
| Audio Compression | G.711 A-law, G.711 u-law, AAC |
| Network | |
| Network Protocol & Service | IPv4, IPv6, TCP, UDP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, NTP, RTSP, SMTP, UPnP, TLS 1.2, TLS 1.3, SNMP, IEEE 802.1X |
| Ethernet Port | Total ports: 17 port(s) Non-PoE: 1 port(s), Ethernet (10/100/1000 Base-T), RJ-45 connector PoE: 16 port(s), Ethernet (10/100 Base-T), RJ-45 connector |
| Maximum Outgoing Throughput | 128 Mbps |
| Security | TLS v1.2, TLS v1.3 encrypted communication |
| Recording | |
| Maximum Recording Throughput | 160 Mbps |
| Search & Playback | |
| Synchronized Playback | 16 channels |
| Smart Search | Set ROI and look for the people and vehicles appearing in the ROI in the past recordings (requires cameras with Smart Motion Detection feature) |
| Forensic Search | Select target object (people, vehicle) and search for the similar object through all the channels |
| Object Visual Tracking | Support, View thumbnails generated by Forensic Search and playback by time sequence |
| System | |
| Server Operating System | Embedded Linux |
| Client PC Operating System | Windows 7, Windows 8, Windows 10, Windows 11 |
| USB | 1-Port USB 2.0, 1-Port USB 3.0 |
| Integration | |
| ONVIF Compliant | Yes, Profile S, Profile G, Profile T |
| Storage | |
| Storage Bay | SATA, Max. 2 Disk(s) (without storage disks) |
| HDD Size | 3.5" |
| Maximum Recording Capacity | 26TB x2 |
| RAID Level | Hardware RAID (on Board) 0, 1 |
| Interface | |
| Serial Port | 1 x RS-485 |
| Audio Interface | 1/1, RCA Jack |
| Digital Input/Output | 8/2 |
| Local Display Interface | HDMI x 1, VGA x 1 |
| General | |
| PoE Output | Maximum 30 Watts per port |
| PoE Power Budget | Maximum 240 W |
| Power Source | AC 100-240V |
| Dimensions | (W x H x D): 380mm x 53mm x 322mm (15.0" x 2.09" x 12.7") Rack Space: 1U |
| Bundled Accessories | USB Mouse |
| Operating Temperature | -10°C ~ 55°C (14°F ~ 131°F) |
| Operating Humidity | 10% - 90% RH, non-condensing |
| Approvals | CE Class A, FCC Class A, BSMI, UL Listed |
| Color | Black |
Specifications are subject to change. Please confirm critical values with us before ordering.
