PMAX-0200 Outdoor Box Camera Housing with Heater and Fan, 110V
IP66 aluminum outdoor housing with heater and fan for box cameras, 110V, -30°C to 50°C.
- Box camera housing with heater and fan
- 110V model
- Operating temperature -30°C to 50°C
- CE, IP66
- Aluminum, beige
- Dimensions (W x H x D): 147 x 140 x 470 mm; weight 2059 g
Overview
Outdoor Box Camera Housing with Heater and Fan, 110V

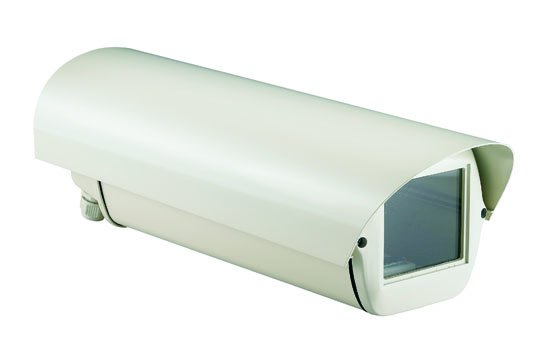

The PMAX-0200 is an outdoor housing for box cameras with a built-in heater and fan for temperature control. The aluminum body is rated IP66 and the housing operates from -30°C to 50°C on 110V.
Key features
- Box camera housing with heater and fan
- 110V model
- Operating temperature -30°C to 50°C
- CE, IP66
- Aluminum, beige
- Dimensions (W x H x D): 147 x 140 x 470 mm; weight 2059 g
At a glance
- Product type
- Box Camera Housing
- Operating temp.
- -30°C ~ 50°C (-22°F ~ 122°F)
Specifications
| Product Profile | |
|---|---|
| Product Type | Box Camera Housing |
| General | |
| Weight | 2059g (4.54lb) |
| Dimensions | (W x H x D): 147mm x 140mm x 470mm (5.79" x 5.51" x 18.50") |
| Fan | Yes |
| Heater | Yes |
| Operating Temperature | -30°C ~ 50°C (-22°F ~ 122°F) |
| Approvals | CE, IP66 |
| Color | Beige |
| Material | Aluminum |
Specifications are subject to change. Please confirm critical values with us before ordering.
Documents
Datasheets, manuals and firmware
Current documents for the PMAX-0200 are sent on request, so you always receive the latest version.
