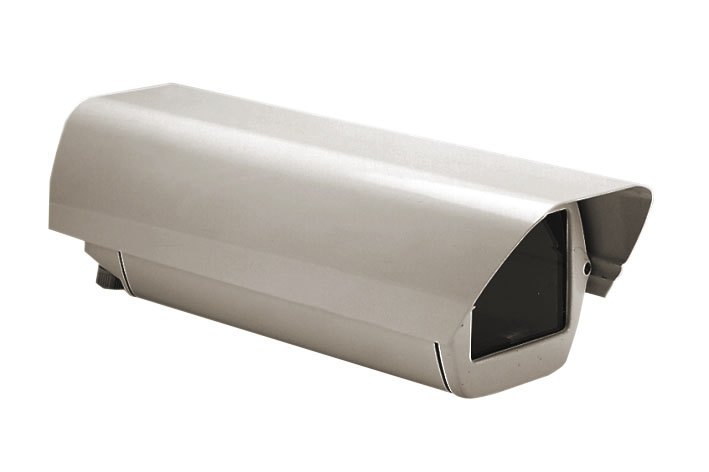

PMAX-0202 Outdoor Box Camera Housing
IP66 aluminum outdoor housing for box cameras, rated -10°C to 50°C.
- Outdoor box camera housing
- Operating temperature -10°C to 50°C
- CE, IP66
- Aluminum, beige
- Dimensions (W x H x D): 113 x 106 x 410 mm; weight 1179.5 g
Overview
Outdoor Box Camera Housing
The PMAX-0202 is a compact outdoor housing for box cameras. It has an aluminum body with CE and IP66 approvals and no heater or fan listed.
Key features
- Outdoor box camera housing
- Operating temperature -10°C to 50°C
- CE, IP66
- Aluminum, beige
- Dimensions (W x H x D): 113 x 106 x 410 mm; weight 1179.5 g
At a glance
- Product type
- Box Camera Housing
- Operating temp.
- -10°C ~ 50°C (14°F ~ 122°F)
Specifications
| Product Profile | |
|---|---|
| Product Type | Box Camera Housing |
| General | |
| Weight | 1179.5g (2.600lb) |
| Dimensions | (W x H x D): 113mm x 106mm x 410mm (4.45" x 4.17" x 16.14") |
| Operating Temperature | -10°C ~ 50°C (14°F ~ 122°F) |
| Approvals | CE, IP66 |
| Color | Beige |
| Material | Aluminum |
Specifications are subject to change. Please confirm critical values with us before ordering.
Documents
Datasheets, manuals and firmware
Current documents for the PMAX-0202 are sent on request, so you always receive the latest version.
