Box Cameras NDAA
A214 5MP Deep Learning 40x Zoom Box Camera with 150 dB WDR
5MP box camera with 40x optical zoom, 150 dB WDR, 60 fps and Deep Learning AI 2.0.
- 5MP on a 1/2.7" sensor; 60 fps at 2592 x 1944
- 40x optical zoom, f4.3-170 mm, F1.6-F5.0, plus 10x digital; P-Iris or auto iris, auto focus
- Extreme WDR at 150 dB; colour minimum illumination 0.002 lux
- Deep Learning AI 2.0: people and vehicle detection, intrusion, line crossing, area enter and exit
- Object metadata: age, gender, mask, vehicle type and driving direction; face recognition, counting and licence plate recognition
- H.265 adaptive streaming, H.264, MJPEG; quad streams; Smart ROI with 3 regions
Deep learning AIOptical zoomWide dynamic rangePoE poweredNDAA compliant
Overview
5MP Deep Learning 40x Zoom Box Camera with 150 dB WDR
The A214 is a 5MP zoom box camera for long-range monitoring indoors or outdoors. Its 40x optical lens, 150 dB WDR and 60 fps output handle distant, fast and high-contrast scenes. Deep learning analytics and object metadata support access, traffic and city surveillance projects.
Key features
- 5MP on a 1/2.7" sensor; 60 fps at 2592 x 1944
- 40x optical zoom, f4.3-170 mm, F1.6-F5.0, plus 10x digital; P-Iris or auto iris, auto focus
- Extreme WDR at 150 dB; colour minimum illumination 0.002 lux
- Deep Learning AI 2.0: people and vehicle detection, intrusion, line crossing, area enter and exit
- Object metadata: age, gender, mask, vehicle type and driving direction; face recognition, counting and licence plate recognition
- H.265 adaptive streaming, H.264, MJPEG; quad streams; Smart ROI with 3 regions
- TPM 2.0 and IEEE 802.1X; Taiwan IoT Cybersecurity Certification
- Two-way audio; 2 digital inputs and 2 outputs; RS-485; ONVIF Profiles G, T and M
- DORI distances 86-3400 / 34.7-1371 / 17.2-680 / 8.6-340 m
- DC 12V, AC 24V or PoE (IEEE 802.3af), 8.28 W on PoE; -30°C to 60°C
At a glance
- Product type
- Box Camera
- Resolution
- 5MP
- Sensor
- 1/2.7" Progressive Scan CMOS
- Lens
- Zoom, f4.3-170mm
- Zoom
- 40x optical zoom, 10x digital zoom
- WDR
- Extreme WDR (150 dB)
- Compression
- H.265 Adaptive Stream, H.264, MJPEG
- Network
- 1 x Ethernet (10/100/1000 Base-T), RJ-45 connector
- Power
- DC 12V, AC 24V, PoE Class 0 (IEEE802.3af)
Specifications
| Product Profile | |
|---|---|
| Product Type | Zoom Box |
| Application Environment | Indoor/Outdoor |
| Maximum Resolution | 5MP |
| Image Sensor | Progressive Scan CMOS |
| Sensor Size | 1/2.7" |
| Effective Pixels | 2608(H) X 1964(V) x 1 (5.1 MP) |
| Day / Night | Yes |
| Low Light Sensitivity | Extreme |
| Minimum Illumination | B/W: 0 lux |
| Mechanical IR Cut Filter | Yes |
| Electronic Shutter | 1-1/10000 second (manual mode); 1-1/10000 second (auto mode) |
| S/N Ratio | 75 dB |
| Lens | |
| Focal Length | Zoom, f4.3-170mm |
| Aperture | F1.6-F5.0 |
| Zoom Ratio | 40x optical zoom, 10x digital zoom |
| Iris | P-Iris Auto iris |
| Focus | Auto focus |
| Horizontal Viewing Angle | 62.6° - 1.9° |
| Vertical Viewing Angle | 48.8° - 1.4° |
| Video | |
| Compression | H.265 Adaptive Stream, H.264, MJPEG |
| Smart ROI | Yes, supports up to 3 configurable regions per supported stream |
| Maximum Frame Rate vs. Resolution | 60 fps at 2592 x 1944 60 fps at 2560 x 1440 60 fps at 2048 x 1536 60 fps at 1920 x 1080 60 fps at 1280 x 1024 60 fps at 1280 x 720 60 fps at 1024 x 768 60 fps at 800 x 600 60 fps at 720 x 480 60 fps at 640 x 480 60 fps at 352 x 240 60 fps at 320 x 240 |
| Multi-Streaming | Simultaneous quad streams |
| Digital Noise Reduction | 3D DNR |
| Wide Dynamic Range | Extreme WDR (150 dB) |
| Image Orientation | Flip, Mirror, Rotation (Corridor mode) (90⁰, 180⁰, 270⁰) |
| Image Enhancement | White Balance, Brightness, Contrast, Sharpness, Saturation, Automatic exposure, Backlight compensation (BLC), Digital Image Stabilizer (DIS, EIS) |
| Privacy Mask | Yes |
| Text Overlay | Yes |
| Built-in Analytics | Smart Motion Detection (People Detection, Vehicle Detection), Smart Intrusion Protection (, People Line Crossing Detection, People Intrusion Detection, People Enter Area Detection, People Exit Area Detection, Vehicle Line Crossing Detection, Vehicle Intrusion Detection, Vehicle Enter Area Detection, Vehicle Exit Area Detection), Tampering Detection, Missing Object Detection, Unattended Object Detection, Crowd Detection, People Loitering Detection, People Flow Counting, People Density Counting, Vehicle Flow Counting, Vehicle Density Counting, Face Detection, Face Capture, Face Matching, Face Recognition, Object Metadata (, Age Detection, Gender Detection, Face Mask Detection, Vehicle Type Detection, Vehicle Driving Direction Detection), Stopped vehicle detection, Incorrect Direction Detection, License Plate Detection, Automatic License Plate Recognition |
| Analytics | |
| Camera Object Metadata | Age, Gender, Mask, Vehicle type, Vehicle driving direction |
| Deep Learning AI | 2.0 |
| Audio | |
| Audio Type | 2-way, Line-in, Line-out |
| Audio Compression | G.711, G.726, AAC, LPCM |
| Network | |
| Network Protocol & Service | IPv4, IPv6, TCP, UDP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, NTP, RTP, RTSP, RTMP, SMTP, FTP, IGMP, ICMP, ARP, SRTP, UPnP, QoS, SNMP, IEEE 802.1X |
| Ethernet Port | 1 x Ethernet (10/100/1000 Base-T), RJ-45 connector |
| Security | IP address filtering, HTTPS encryption, Password protected user level, IEEE 802.1X network access control, Support Trusted Platform Module 2.0 (TPM 2.0) |
| Detection Range | |
| Observation Range | Detection: 86m-3400m Observation: 34.7m-1371m Recognition: 17.2m-680m Identification: 8.6m-340m |
| Event | |
| Event Trigger | Video motion detection (4 regions), External device through digital input, Sound detection, Intelligent event detection |
| Event Response | E-mail notification with snapshots, Save video to storage, Upload snapshot to FTP server, Activate external device through digital output |
| System | |
| Watchdog | Support |
| Integration | |
| Edge Recording | Support (integration with NVR by ONVIF Profile G or proprietary protocol) |
| ONVIF Compliant | Yes, Profile G, Profile T, Profile M |
| Web Browser | Microsoft Edge(IE mode), Microsoft Edge, Google Chrome, Firefox |
| Storage | |
| Blocklist/Allowlist | People: up to 15000 records, Vehicle: up to 100000 records |
| Interface | |
| Serial Port | 1 x RS-485 |
| Audio Interface | 1/1, 3.5mm Phone Jack |
| Digital Input/Output | 2/2 (Terminal block) |
| General | |
| Power Source | DC 12V, AC 24V, PoE Class 0 (IEEE802.3af) |
| Power Consumption | 7.53 W (DC), 6.82 W (AC), 8.28 W (PoE) |
| Weight | 520g(1.15lb) |
| Dimensions | (W x H x D): 82.6mm x 60mm x 116mm (3.25" x 2.36" x 4.57") |
| Explosion Protection | Optional Explosion-Proof Enclosure |
| Operating Temperature | -30°C ~ 60°C (-22°F ~ 140°F) |
| Operating Humidity | 10% - 90% RH, non-condensing |
| Approvals | CE Class B, FCC Class B, Taiwan IoT Cybersecurity Certification (CNS-16120 Level 1) |
| Color | White |
| Material | Camera body: Metal Housing |
Specifications are subject to change. Please confirm critical values with us before ordering.
Documents
Datasheets, manuals and firmware
Current documents for the A214 are sent on request, so you always receive the latest version.
Request datasheetRelated products
Housings
PMAX-0200
Outdoor Box Camera Housing with Heater and Fan, 110V
The PMAX-0200 is an outdoor housing for box cameras with a built-in heater and fan for temperature control. The aluminum body is rated IP66 and the housing operates from -30°C to 50°C on 110V.
Housings

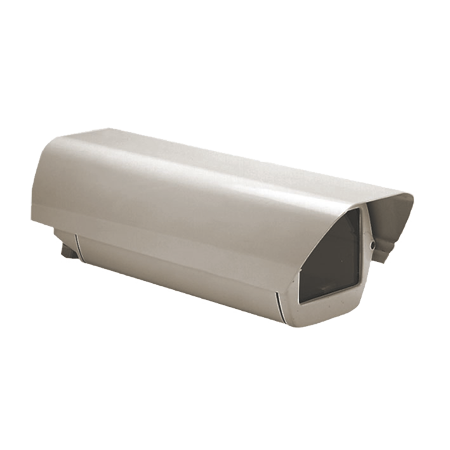

PMAX-0202
Outdoor Box Camera Housing
The PMAX-0202 is a compact outdoor housing for box cameras. It has an aluminum body with CE and IP66 approvals and no heater or fan listed.
Housings

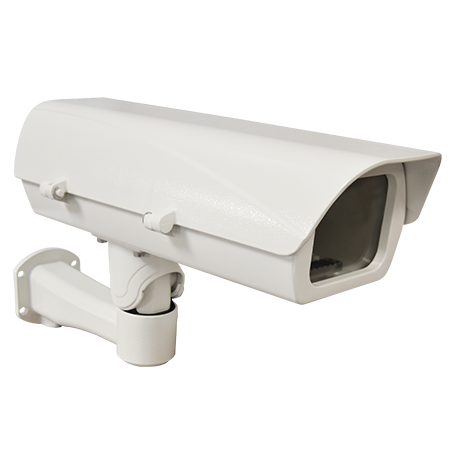

PMAX-0203
Heavy Duty Outdoor Housing with Heater, Fan and Bracket, 230V
The PMAX-0203 is a heavy-duty outdoor housing for box cameras, supplied with a mounting bracket. A heater and fan regulate the interior, and the metal casing is rated IP68 and IK10.
Housings
PMAX-0204
Heavy-Duty Outdoor Box Camera Housing with Heater and Fan, 110V
The PMAX-0204 is a weather-sealed housing for box cameras installed outdoors. A built-in heater and fan help keep the camera within its working temperature across wide climate swings. The kit includes a mounting bracket and runs from 110V AC.
Housings
PMAX-0206
PoE Heavy Duty Outdoor Housing with Heater, Fan, Defogger and Bracket
The PMAX-0206 is a heavy-duty outdoor housing for box cameras that is powered over High PoE. It adds a defogger to the heater and fan, includes a bracket, and has an IP68, IK10 metal casing.
Housings

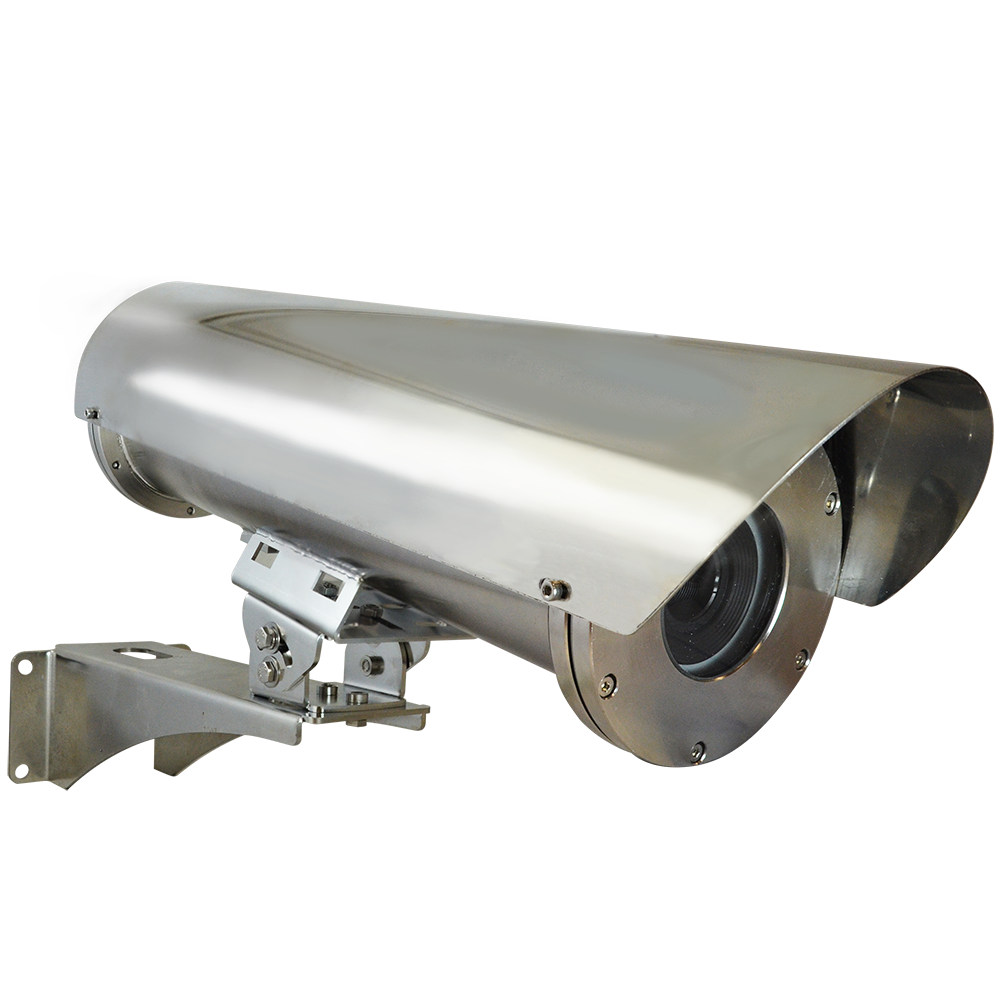

PMAX-0208
